Introduction: The Need for Smoke Extraction in Underground Parking
Underground parking facilities are prone to smoke accumulation during fire incidents due to:
- Limited natural ventilation
- Multiple levels and confined spaces
- High vehicle density and potential fire loads
An effective smoke extraction system ensures safe evacuation, firefighter access, and code compliance.
Key Design Considerations
Smoke Movement and Airflow Dynamics
- Smoke rises through stairwells, ramps, and elevator shafts
- Use CFD (Computational Fluid Dynamics) simulations to model smoke propagation
- Ensure adequate exhaust points and air inlets to control pressure and airflow
Extraction Fans and Ductwork
- Install high-capacity smoke exhaust fans for rapid smoke removal
- Design dedicated ductwork or open-tunnel ventilation for each level
- Include redundant systems to maintain performance if one fan fails
Fire and Smoke Dampers
- Integrate EN / UL certified fire dampers in ductwork
- Prevent smoke spread to adjacent areas and stairwells
- Enable zoned smoke extraction, reducing energy use during normal operation
Control and Automation Systems
- Use smoke detectors and fire alarm integration to trigger extraction
- Implement Building Management System (BMS) monitoring for real-time control
- Adjust fan speed, damper positions, and airflow based on smoke density and location
Compliance and Safety Standards
Underground parking smoke extraction must meet:
- NFPA 92 for smoke control
- EN 12101 for smoke and heat control systems
- Local fire safety regulations and building codes

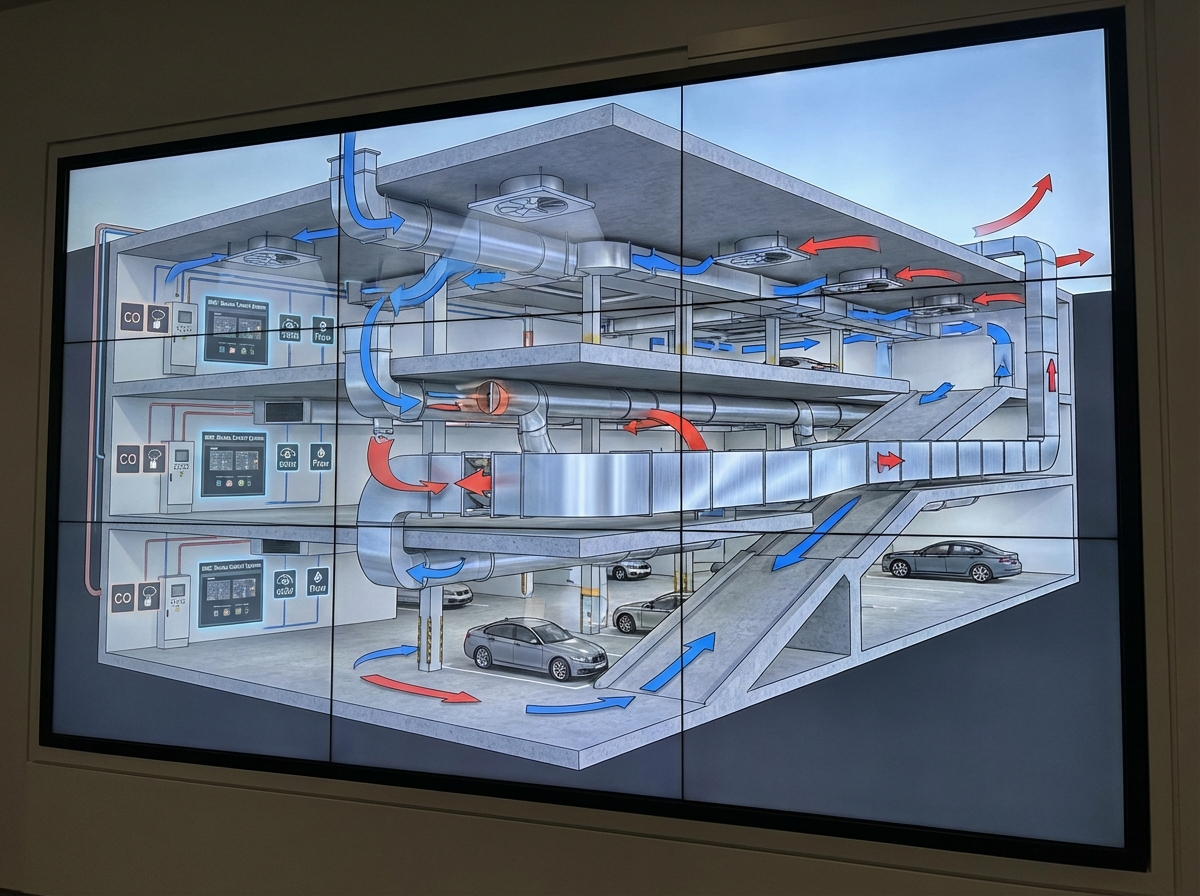

Image Reference (for Blog Integration)
Image Alt Text:
Multi-level underground parking smoke extraction system showing fans, ducts, dampers, and airflow paths.
Image Title:
Smoke Extraction Design for Multi-Level Underground Parking
Conclusion: Safety and Efficiency in Underground Parking
A well-designed smoke extraction system ensures:
- Rapid smoke removal
- Safe evacuation routes and firefighter access
- Compliance with fire safety standards
YAOAN provides engineered solutions for multi-level parking, combining high-capacity fans, fire dampers, and automated controls for effective smoke management.
FAQ – Smoke Extraction in Underground Parking
Why is smoke extraction critical in underground parking?
Confined spaces trap smoke, endangering occupants and hindering firefighting operations. Proper extraction ensures safety and code compliance.
What equipment is essential for smoke extraction?
High-capacity fans, fire/smoke dampers, ductwork, sensors, and automated control systems integrated with fire alarms.
How do standards like NFPA 92 or EN 12101 apply?
They define requirements for smoke control, fan capacity, duct design, and safety to ensure effective smoke management during fire incidents.
