Importance of Fire Dampers in HVAC Systems
Fire dampers are critical components in HVAC systems, designed to prevent the spread of fire and smoke through ductwork. Proper selection ensures:
- Compliance with local and international safety codes
- Protection of building occupants and assets
- Integration with emergency ventilation systems
Primary Considerations
Compliance with Standards
Fire dampers must meet national and international standards:
- UL 555, EN 1366-2, BS 476
- Ensure the damper type (curtain, blade, or combination) is certified for the intended installation
- Compliance guarantees system performance during fire events
Installation Location and Duct Type
- Fire dampers are installed where ductwork penetrates fire-rated walls or floors
- Selection depends on:
- Vertical vs horizontal ducts
- Round, rectangular, or spiral duct shapes
- HVAC system type (VAV, CAV, or DOAS)
Temperature and Pressure Ratings
- Dampers must withstand design airflow and temperature during normal operation
- Fire-rated dampers must seal under extreme temperatures during a fire
- Pressure ratings ensure compatibility with fan operation and duct resistance
Actuation Method
- Mechanical (fusible link)
- Electric (connected to fire alarm systems)
- Pneumatic or hybrid systems
Selection depends on emergency response requirements and building automation integration
Performance Factors
Leakage and Sealing Efficiency
- Low leakage rates prevent smoke spread
- Tight seals protect adjacent zones and maintain HVAC efficiency
Durability and Maintenance
- Fire dampers should resist corrosion and mechanical wear
- Easy access for inspection, testing, and replacement ensures long-term reliability

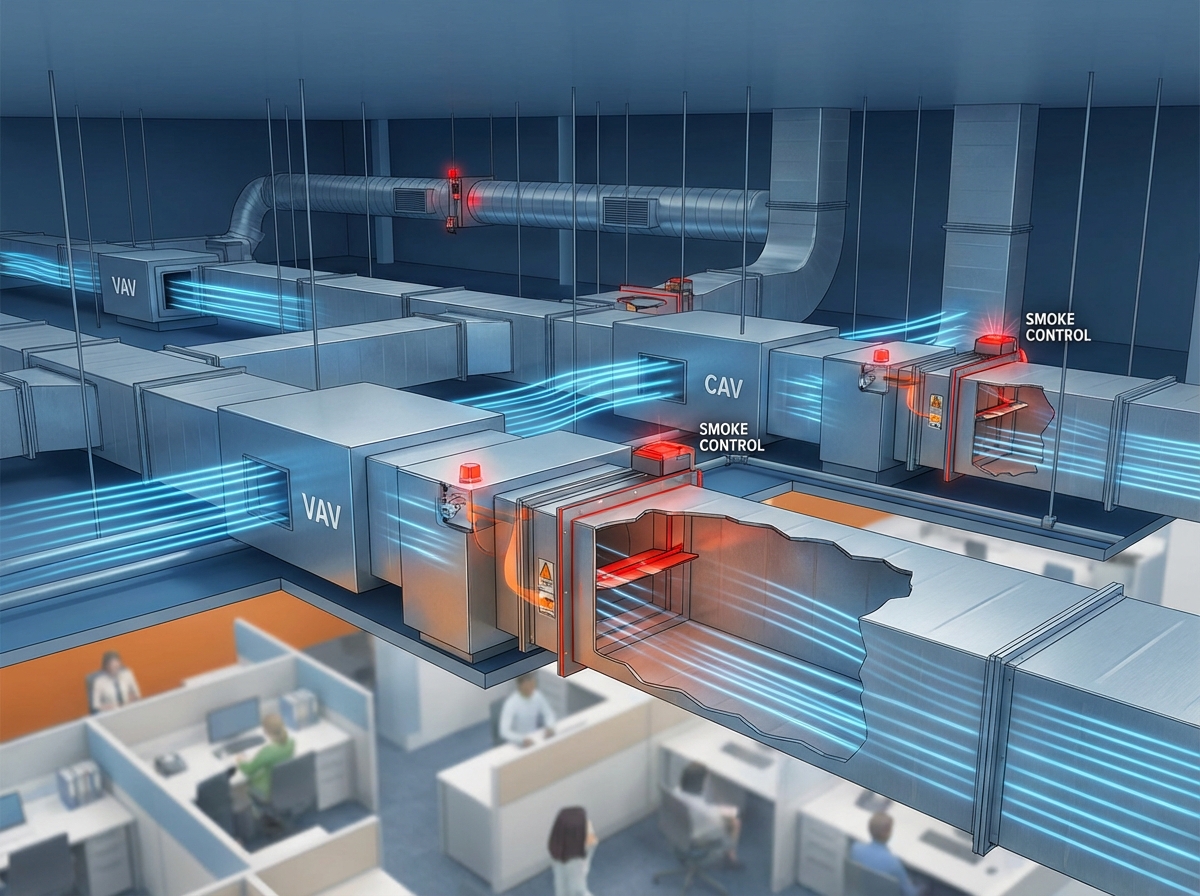

Integration with Building Automation
- Connects to fire alarm and smoke control systems
- Supports automated building shutdown or emergency airflow sequences
- Monitoring ensures immediate detection and actuation in case of fire
Fire Damper Types and Applications
Curtain Fire Dampers
- Compact and suitable for tight spaces
- Flexible blade for large openings
- Common in commercial office buildings
Blade Fire Dampers
- Rigid blades for rectangular or round ducts
- Suitable for high airflow and industrial HVAC systems
- Often paired with smoke detectors for automatic closure
Combination Fire/Smoke Dampers
- Provides both fire and smoke protection
- Ideal for hospitals, airports, and high-occupancy public spaces
- Integrates seamlessly with VAV or DOAS systems
Design and Installation Best Practices
Proper Sizing
- Select dampers according to duct size, airflow, and pressure drop
- Oversized dampers may reduce system efficiency, undersized may compromise safety
Placement Strategy
- Install at fire-rated barriers, duct intersections, and high-risk zones
- Ensure no obstructions prevent full closure of damper blades
Testing and Certification
- Conduct regular inspections and functional tests
- Maintain documentation for code compliance and insurance requirements
FAQ
What is the purpose of a fire damper in HVAC?
A fire damper prevents the spread of fire and smoke through ducts, protecting building occupants and property.
How do I choose the right fire damper type?
Consider duct type, airflow, building occupancy, and fire safety code requirements. Curtain, blade, or combination dampers are selected accordingly.
Can fire dampers integrate with building automation systems?
Yes, electric or hybrid actuated fire dampers can connect to fire alarms and automated ventilation controls for real-time response.
How often should fire dampers be tested?
Most codes require annual inspection and testing, but high-risk areas may require more frequent checks.
